Patios That Capture Rain and Store 1,200 Gallons

Goal: Combine functional stormwater control with inviting outdoor living.

Surface Beauty, Subsurface Function

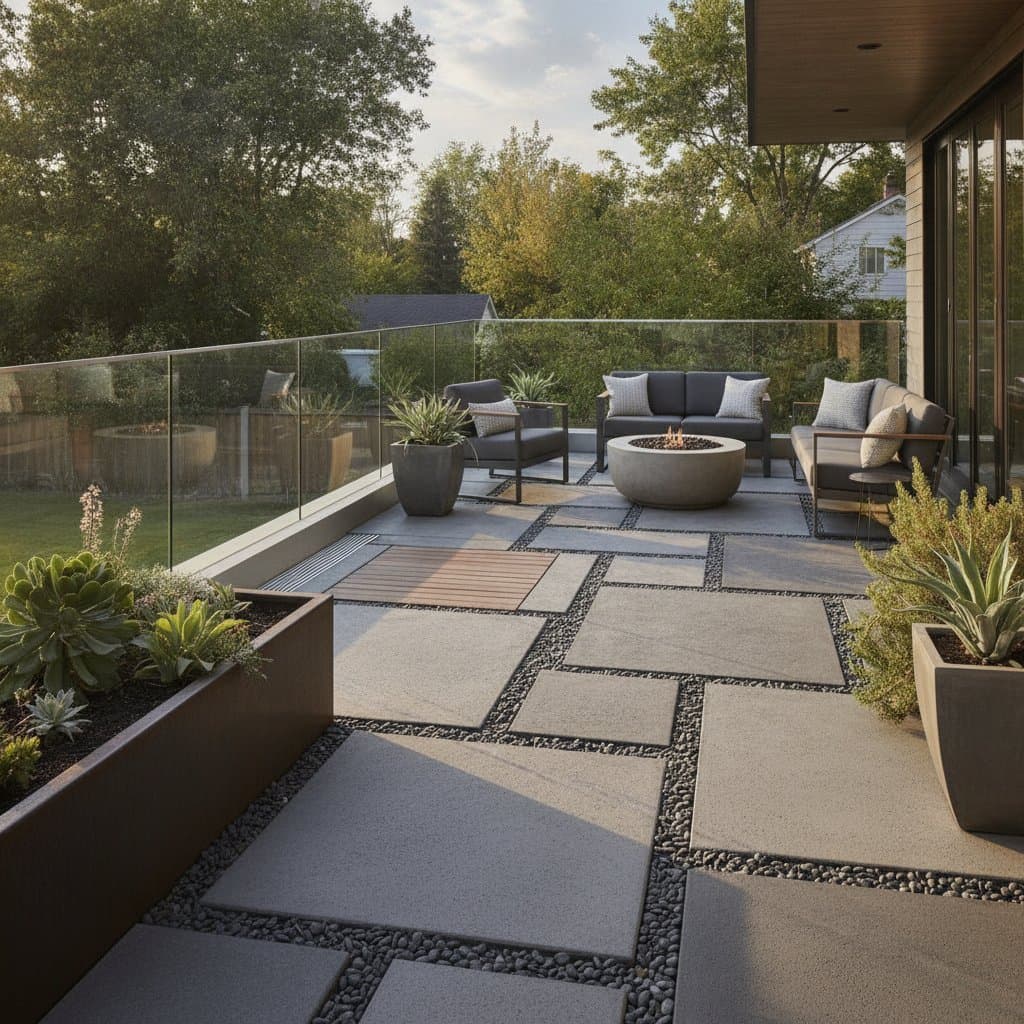

At first glance, the patio reads as a clean, contemporary space defined by rectangular pavers and soft perimeter plantings. The surface pattern follows the architecture of the house, with joints that double as water inlets. Permeable concrete pavers from the Eco Dublin collection were chosen for their textured finish and muted tones of gray and taupe.

The subtle variation in color helps disguise natural dirt, keeping the space looking fresh between cleanings. Underneath, the engineering is deliberate. Each paver rests on a compacted gravel base that allows water to move freely down to the collection layer. A perforated PVC pipe network carries filtered water to the central tank, positioned just beyond the patio edge and concealed by a cedar enclosure.

Jensen explained, "We treated every layer of the patio as part of the system. It is not just a surface. It is a series of materials that work together to hold structure and manage flow."

Material Choices that Serve Both Form and Purpose

Every surface and finish was selected with dual performance in mind. The permeable pavers were the starting point, but the supporting materials complete the system.

• Sub-base: A 4-inch layer of angular crushed stone provides stability and drainage.
• Filter Fabric: A geotextile membrane separates the soil from the gravel, keeping the system clean and preventing clogging.
• Edging: Powder-coated steel edging defines the patio perimeter, keeping pavers tight and preventing migration.
• Decking: Rot-resistant cedar treated with natural oil for longevity and easy maintenance.
• Planters: Welded steel planters with a rusted patina finish to complement the neutral tones of the patio.

Emma said, "We did not want anything to feel too engineered or industrial. Mara helped us choose materials that look warm and organic but still perform technically behind the scenes."

The result is a cohesive aesthetic that conceals complex functionality. The patio feels soft and natural, even though it hosts an advanced water management system below.

Managing Water Without Losing Style

Rainwater harvesting patios rely on careful grading and hidden infrastructure. Traditional systems often require visible drains or steep slopes, but modern design allows these features to vanish into the layout. The success of this project lies in its subtlety.

The patio slopes less than one inch every ten feet. That gentle grade is enough for water to move toward the collection lines without creating uneven surfaces. Small gaps between pavers encourage infiltration. Below those joints, fine gravel works as a filter, trapping sediment before water reaches the storage tank.

The underground tank includes a first-flush diverter to separate debris from usable water. A submersible pump connects directly to the irrigation system, which runs on an automated timer. During dry periods, the system switches seamlessly to municipal water to maintain consistent pressure.

This passive intelligence allows the homeowners to enjoy the benefits of rainwater harvesting without manual operation. The only visible indicator of the system is a small access cap camouflaged among the plantings.

Integrating Planting with Water Strategy

The surrounding garden is essential to the system success. Instead of a decorative edge, it functions as a living filter. The plant palette includes species that tolerate both occasional saturation and dry spells. Blue fescue, lavender, and sedum dominate the sunny zones, while ferns and hosta soften the shaded areas near the fence line.

The designers also included a rain garden basin at the far corner of the yard. It captures overflow from the main tank during heavy storms. Native rushes and daylilies stabilize the soil while absorbing excess moisture. This layered planting strategy reduces erosion and turns potential problem areas into visual assets.

Jensen said, "We wanted the garden to be part of the water story. Every plant has a purpose, whether it is filtration, shade, or pollinator support."

Maintenance Made Simple

A common hesitation with rainwater harvesting patios is maintenance. The homeowners wanted reassurance that the system would not become a burden. Jensen addressed this concern early in the design process.

Routine care includes brushing debris off the pavers and flushing the filter lines twice a season. The tank sediment basket lifts out easily for cleaning. The irrigation system filters are accessible from a small hatch in the planting bed. Most tasks take less than an hour.

Emma noted, "It is actually easier than we expected. The system is low-tech where it needs to be. We can handle everything ourselves."

The designer also built in visual cues for maintenance. A small inspection stone near the tank changes color when water levels are high, signaling that the system is full and functioning properly. These subtle touches keep the technology approachable.

Expanding the Idea to Other Homes

Dual-purpose patios are not limited to large custom landscapes. The same principle can adapt to smaller yards, rooftop terraces, or shared courtyards. The key factors are slope, soil type, and available storage space.

For new builds, integrating a rainwater collection base during patio construction is the most efficient approach. For retrofits, modular permeable pavers can replace solid sections of existing patios without major excavation. Even a small catchment system can provide enough water for container gardens or lawn irrigation.

Contractors recommend starting with a professional drainage assessment. From there, homeowners can choose between above-ground barrels, buried tanks, or connected cisterns depending on site conditions.

Living with the Completed Patio

Months after completion, Emma and Luis say their patio feels like an extension of the house. The surface stays cool underfoot, the garden thrives, and their water bills have dropped noticeably. More importantly, the system has handled several heavy rain events without pooling or runoff.

"Before, we always had muddy spots and standing water near the steps," Luis said. "Now the rain disappears within minutes, and we know it is being reused for something useful."

The project demonstrates how thoughtful design can unite sustainability with everyday comfort. A rainwater harvesting patio does not have to announce its purpose. When done well, it blends into the rhythm of daily life, collecting water quietly while supporting a vibrant outdoor experience.

Homeowners considering similar upgrades learn that beauty and efficiency can share the same footprint. A patio can be more than a gathering space. It can be a system that works for both people and the planet.
